AllVege

Weighing Machine

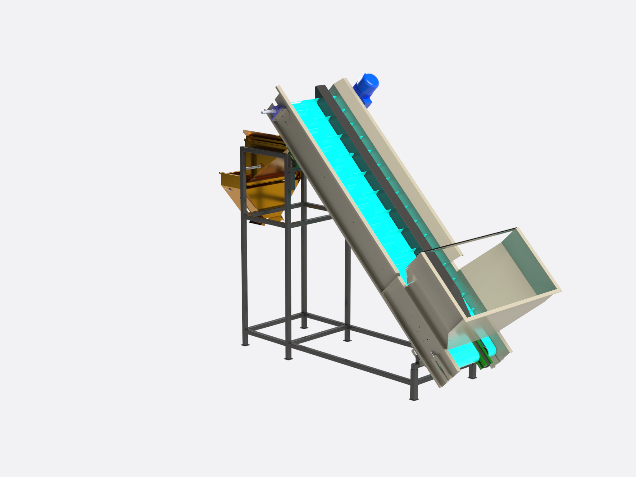

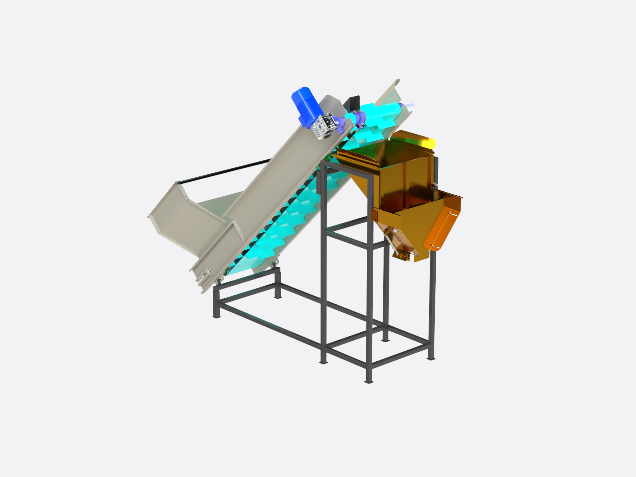

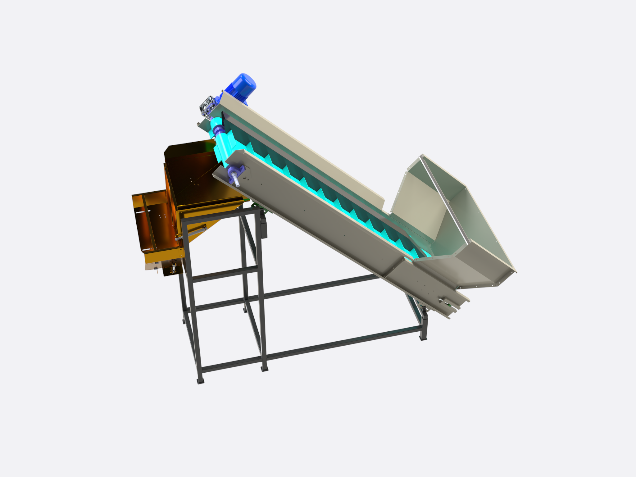

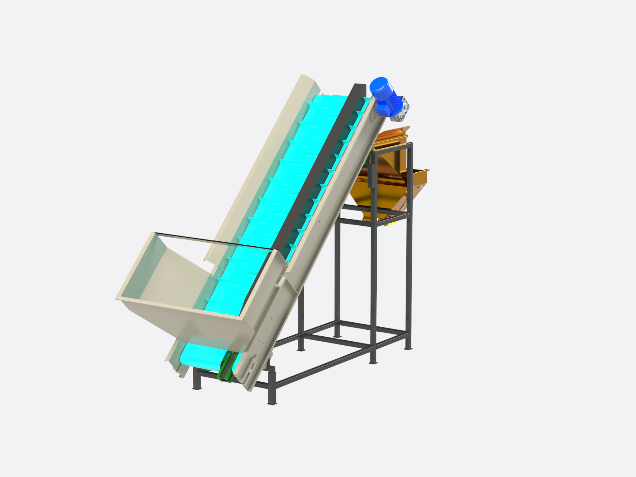

The Weighing Machine is designed to accurately measure produce before packing or transfer. Products are transported upward on an inclined belt and collected in a weighing bin. Once the selected weight is reached, the bottom of the bin opens using a foot pedal, allowing the produce to fall into a box, bag, or onto a conveyor.

The unit is mounted on wheels so it can easily be positioned wherever it is needed in the processing or packing area.

Single-belt versions are generally used for root vegetables, while two-belt models are ideal for round produce. As the target weight is approached, one belt pauses while the other continues to ensure accurate final weighing.

Characteristics

  • Suitable for weights from 5 kg to 50 kg
  • Works with both round and root type produce
  • Single belt model for root vegetables
  • Two belt model for round produce
  • Available in 250 cm or 350 cm belt length
  • 50 mm cleat height for secure product movement
  • Painted mild steel frame
  • Painted mild steel electrical cabinet

Specifications

AV AW 50-01-250 AV AW 50-01-350 AV AW 50-02-250 AV AW 50-02-350
Number of belts 1 1 2 2
Belt length (cm) 250 350 250 350

Options

Material and treatment (frame)

Painted mild steel
Steel frame with protective industrial coating

Cleats height

Cleats height
50 mm high cleats for stable transport

Electrical control

Stand-alone
Motors, sensors and control panel included (5, 10, 15 or 20 m cable)

Material and treatment (electrical panel)

Painted mild steel
Electrical cabinet built from painted steel
