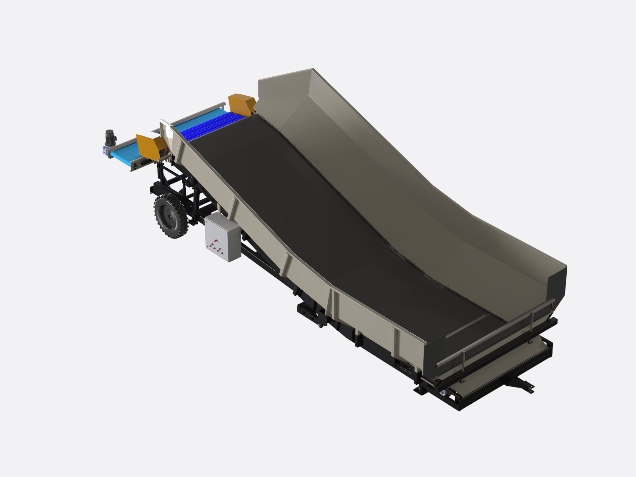

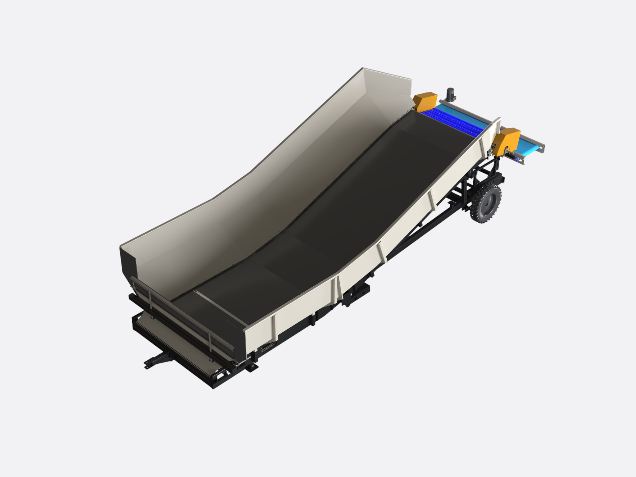

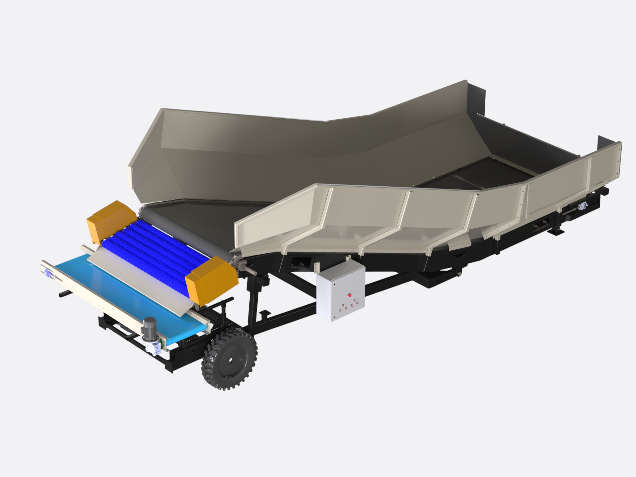

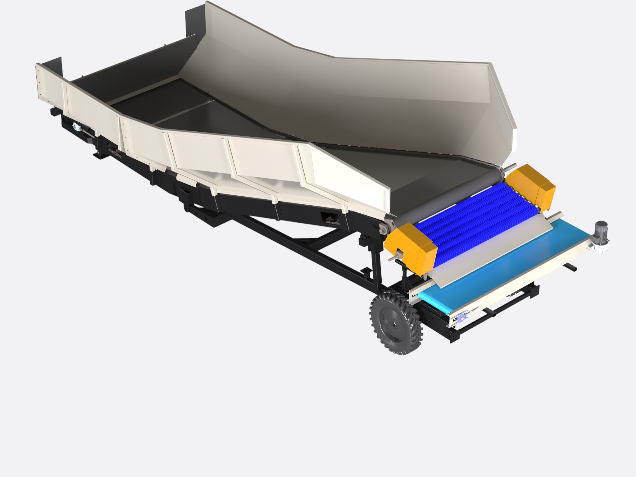

Receiving Hopper

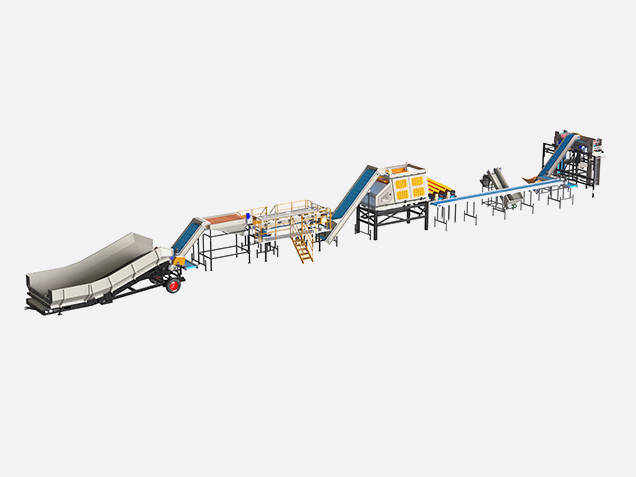

The Receiving Hopper from Allvege Process Technologies is designed for high-volume produce intake, acting as a robust buffer system for continuous feeding of washing, grading, and storage lines.

The hopper accepts produce from trailers, boxes, bins, and big bags. A heavy-duty moving floor transports the product diagonally upward while the inclined hopper design ensures smooth, uniform and damage-free product flow.

A frequency inverter allows accurate adjustment of the discharge rate to match downstream processing capacity. Mounted on industrial wheels, the hopper can be repositioned easily within the facility.

Characteristics

  • High-capacity intake up to 20 tons per hour
  • Available in multiple widths and hopper lengths
  • Ideal for feeding washers, graders, and cold storage lines
  • Can be loaded by trailers, bins, boxes, and big bags
  • Heavy-duty conveyor belts for long service life
  • Variable-speed floor with frequency inverter
  • Inclined floor design for consistent product flow
  • Optional dosing sensor for automatic capacity control
  • Mounted on wheels for easy relocation

Specifications

Width of the machine (cm) Length of the incline part (cm) Length of the straight part (cm) Total content (m³) Effective content (m³)
AV ARH 200 200 600 0 15.5 9.3
200 700 0 18.0 10.8
200 800 0 20.5 12.3
AV ARH 240 240 700 0 21.0 12.6
240 800 0 24.0 14.4
240 900 0 27.5 16.5
AV ARH 300 300 800 0 28.5 17.1
300 900 0 32.0 19.2
300 1000 0 36.0 21.6

Options

Material and treatment (frame)

Painted mild steel
Frame is made from painted mild steel. Bearings and drive/idle rollers are mild steel
Stainless steel
Frame is made from stainless steel AISI304. Bearings and rollers are mild steel
Galvanized steel
Frame is made from galvanized steel. Bearings and rollers are mild steel

Material and treatment (plating)

Painted mild steel
The plating is made from painted mild steel
Stainless steel
The plating is made from stainless steel AISI304

Electrical control

Stand-alone
Motors, sensors and control panel. Cable length: 5, 10, 15 or 20 meters
No electric
Motors and necessary sensors

Material and treatment (electrical panel)

Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304

Dosing Sensor

Dosing Sensor
Automatically regulates output based on product load

Dosing mill

Dosing mill
Prevents product clumping and irregular discharge

Subframe – wheels

Wheels
Allows easy transportation inside the facility

Subframe – first part

Roller set
Designed for roller set mounting
Product belt
Support frame prepared for product belt
Acceleration belt
Support frame prepared for acceleration belt

Subframe – second part

Roller set
Second part designed for roller set
Product belt
Second part designed for product belt

Subframe – third part

Roller set
Third part designed for roller set
Product belt
Third part designed for product belt

Subframe – fourth part

Product belt
Fourth part designed for product belt

Waste belt

1
One waste belt included
2
Two waste belts included

Chain greasing

Automatic
Automatic chain grease system included
