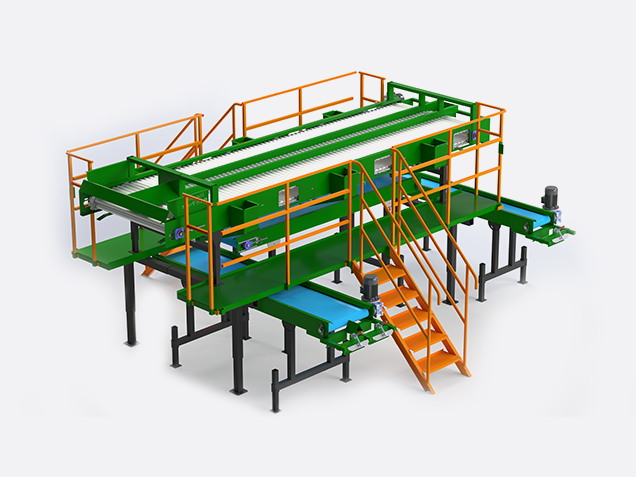

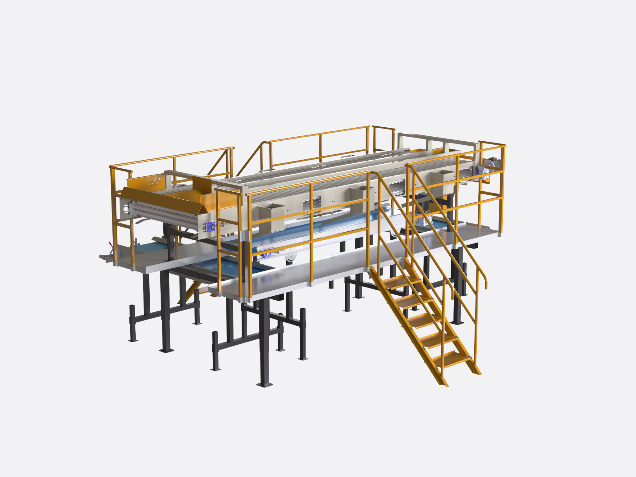

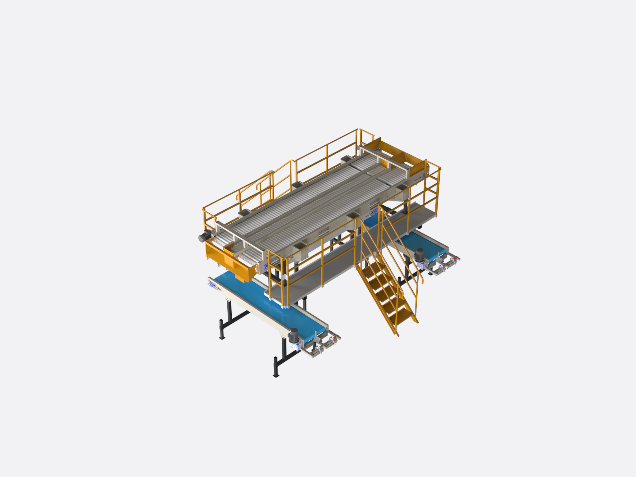

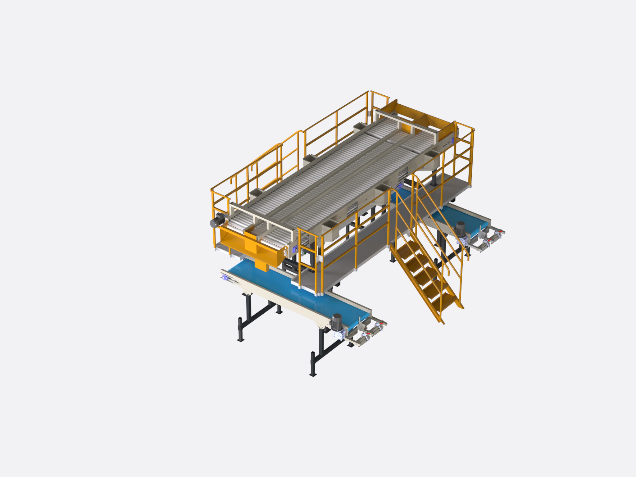

Inspection Unit

The Inspection Unit is designed for manual quality checking and removal of unwanted material from produce. Products are carried over rotating rollers, allowing operators to easily see and remove foreign objects, damaged items, or unwanted material.

Waste and rejected produce drop through the rollers into a collection bin, while the good product continues towards the outfeed. The roller speed can be adjusted to match the type of produce being handled.

A side chute is included to guide waste away from the main flow. The unit is intended for standing operators and can optionally be supplied with a protective cabin to reduce dust and noise from surrounding equipment.

Characteristics

  • Rollers available in stainless steel or PVC
  • Electrical panel available in painted or stainless steel
  • Side chute to guide waste to bin or conveyor
  • Central aisle with separate waste passage
  • Integrated LED lighting for better visibility
  • Emergency safety cord to stop the line
  • Speed control via frequency inverter

Specifications

AV RIZ 60 AV RIZ 80 AV RIZ 100 AV RIZ 120 AV RIZ 140
Roller width (cm) 60 80 100 120 140
Machine length (cm) 125 – 650 125 – 650 125 – 650 125 – 650 125 – 650

Options

Material and treatment (frame)

Painted mild steel
Painted steel frame for industrial environments
Stainless steel
Stainless steel frame for hygienic operation

Rollers

Stainless steel Ø30 mm
High durability stainless steel rollers
PVC Ø32 mm
Food-safe PVC rollers
PVC Ø56 mm
Heavy-duty PVC rollers

Electrical control

No electric
Motors and sensors only
Stand-alone
Control panel with cable length 5–20 m
Central control
Integrated into processing line

Frequency inverter

Speed control
Adjustable roller speed

Electrical panel material

Painted mild steel
Standard electrical enclosure
Stainless steel
Hygienic stainless steel enclosure

Waste handling

Side chute
Directs waste to conveyor or bin
Central aisle
Separate waste flow path

Lighting & Safety

Light strip
Improves visibility on inspection area
Safety cord
Emergency stop along the machine

Roller speed

Fixed
Constant roller speed
Adjustable
Speed adjustable via inverter
