Material and treatment (frame)
Zinc plated steel
Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Belt
PVC
The belt is made of PVC
PU
The belt is made of PU
Rubber
The belt is made of rubber
Cleats*
Straight
The type of cleats is straight
Cleats shape*
15 x 15
The shape of the cleats is 15 x 15
Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
Frequency inverter*
Speed adjustment
A frequency inverter is used to control the speed
Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
Material and treatment (bottomside cover)*
Zinc plated steel
A cover is mounted on the bottom of the machine, made from zinc plated steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on the bottom of the machine, made from stainless steel AISI304. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
Material and treatment (topside cover)*
Zinc plated steel
A cover is mounted on top of the machine, made from zinc plated steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on top of the machine, made from stainless steel AISI304. The length of the topside cover is 0 t/m 2500, steps of 25 cm
Switch*
Maintenance
A maintenance switch is included
Reverse
It is used to change the direction of the belt
Start/stop
It is used to start and stop the belt
Product sensor*
Sensor
The product’s height is determined by the product sensor
Bracket*
Bracket
Bracket is used to mount the product sensor

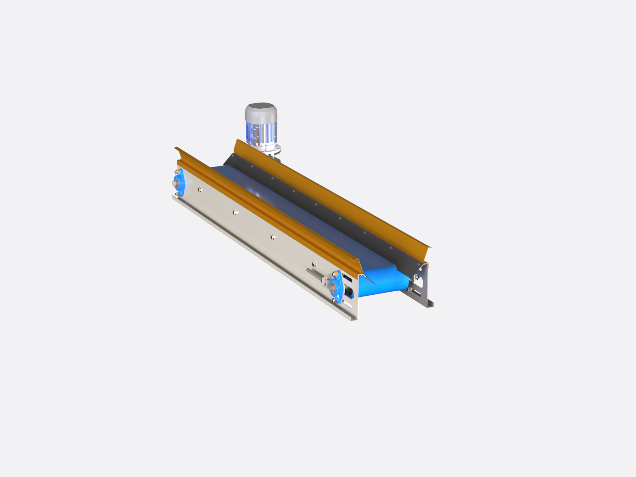

Motor on top*
On top
The motor is placed on top of the machine
Omega drive*
Omega
Omega drive is included to make sure the belt can move both ways
Extra motor*
Extra motor
An extra motor is included to make sure the belt can move both ways. Available options are 0.37 KW, 0.75 KW, 1.1 KW, 1.5 KW, 2.2 KW or 3 KW. If this option is selected, the originally selected power (kW) must be divided between the two motors
Waste collection – chute*
Chute
A waste chute is included on the end of the belt. The chute will guide waste to a transport conveyor or box
