AllVege

Dryer

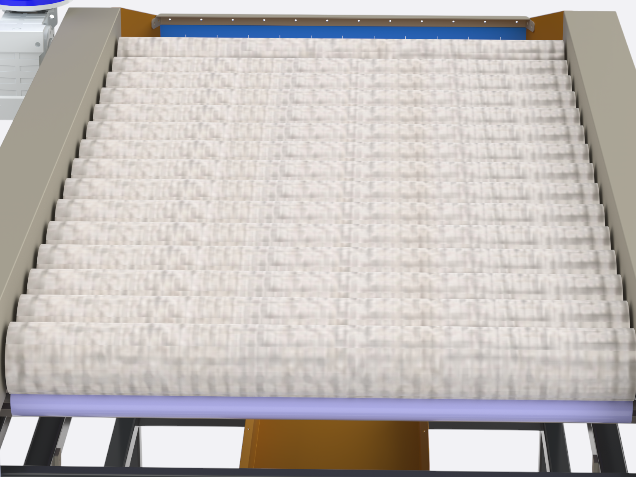

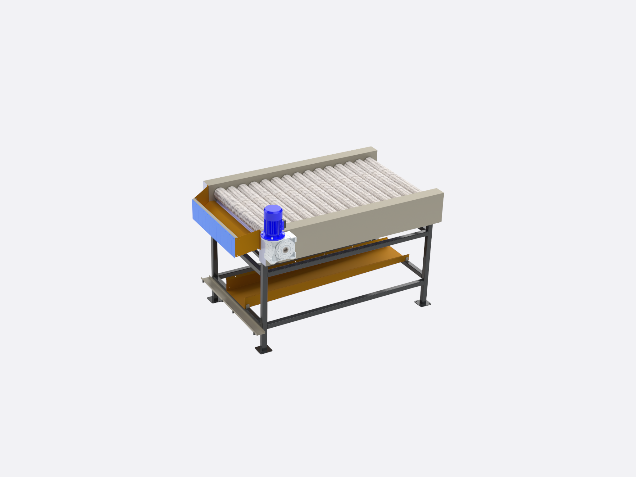

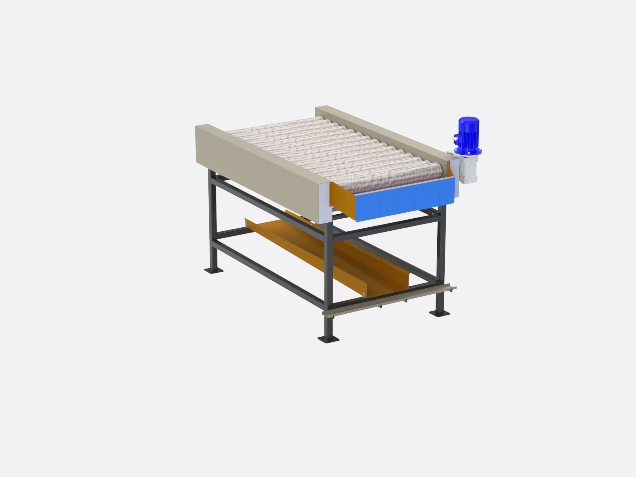

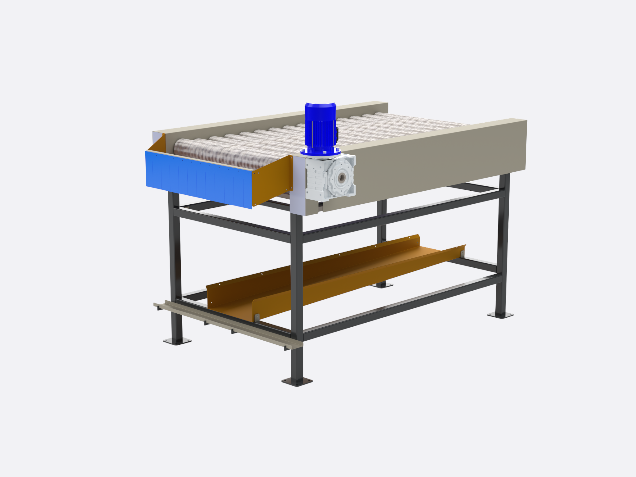

The AllVege Dryer is specially developed to remove surface moisture from fruits and vegetables after the washing process. It uses high-absorption felt rollers that gently take away excess water from the produce. These felt rollers are continuously squeezed by stainless steel pressure rollers, which release the collected water and keep the system working efficiently.

Characteristics

  • The machine frame is made using AISI 304 stainless steel, while the bearings and shaft are manufactured from mild steel.
  • The control panel can be supplied in either AISI 304 stainless steel or painted mild steel, depending on customer preference.
  • An overhead bypass system can be added when required.
  • The water drainage gutter is built from AISI 304 stainless steel and is equipped with a DN100 outlet connection.
  • An automatic product emptying system can be integrated to ensure all produce is removed from the rollers after drying.
  • Automatic bearing installation or lubrication inside the roller dryer can be provided as an optional feature.
  • The supporting sub-frame can be supplied in painted mild steel, stainless steel AISI 304, or galvanized steel based on application needs.

Specifications

AV DR 90 AV DR 110 AV DR 130 AV DR 150 AV DR 180
Width of the roller (in cm) 90 110 130 150 180
Amount of rollers 10, 15, 20 10, 15, 20 10, 15, 20 10, 15, 20 10, 15, 20
Diameter of the rollers (in mm) Ø 121 Ø 121 Ø 121 Ø 121 Ø 121

Options

Material and treatment (frame)

Stainless steel
Frame is made from stainless steel AISI304. The bearings and shaft are from mild steel.

Roller / brush hardness

Felt
(Part of) the rollers are made from stainless steel AISI304 covered with felt.
Gummy
(Part of) the rollers are gummy rollers, to protect the roller from wear.
Brush hardness
(Part of) the rollers are provided with brushes. The brushes have a hardness of 0.2 mm (black), 0.25 mm (yellow), 0.3 mm (red), 0.35 mm (grey), 0.4 mm (green), 0.45 mm (blue), 0.7 mm (black) or 1.2 mm (white).

Electrical control

No electric
Motors and necessary sensors.
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter.
Central control in line
Motors and necessary sensors.

Material and treatment (electrical panel)

Painted mild steel
The electrical panel is made from painted mild steel.
Stainless steel
The electrical panel is made from stainless steel AISI304.

Material and treatment (subframe)*

Stainless steel
It is made from stainless steel AISI304.
Painted mild steel
It is made from painted mild steel.
Galvanized steel
It is made from galvanized steel.

Height of subframe*

Height of subframe
0 to 5 meter.

Water gutter*

Water gutter
The water gutter is made from stainless steel AISI304.

Emptying system*

Automatic
The emptying system is made from stainless steel AISI304 and is used to get the last potatoes off the rollers.

Bearing greasing

Manual
The bearings can be greased manually.
Automatic
The bearings are greased automatically.
