AllVege

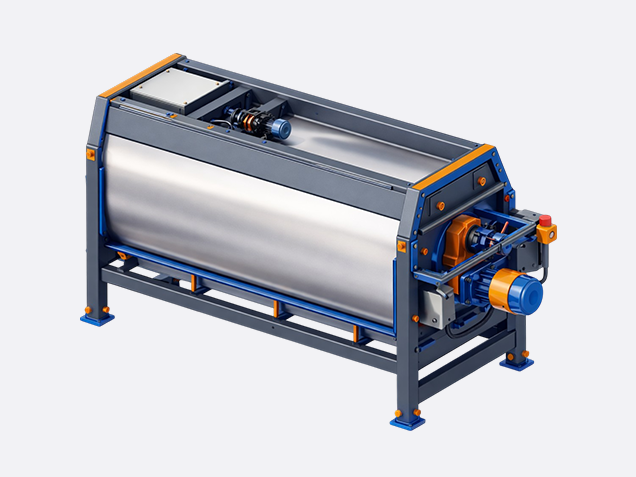

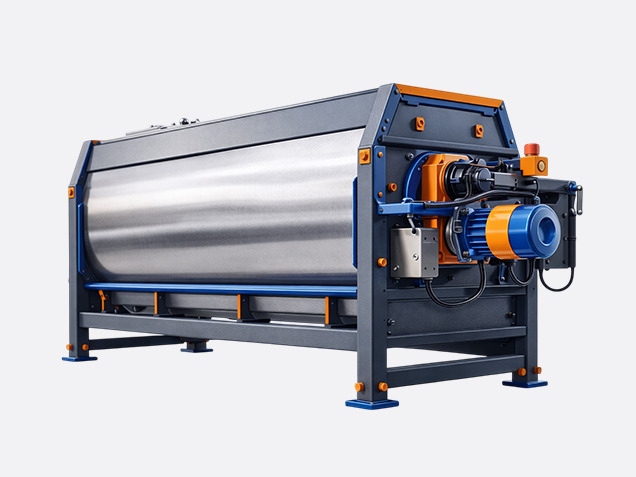

Polisher

The Polisher is designed to enhance the visual quality of fresh vegetables by gently cleaning and polishing their outer surface. By removing dust, loose soil, and minor surface imperfections, it helps produce look cleaner and more appealing before packing or further processing.

The system uses a rotating drum fitted with durable nylon brushes. Produce enters through the infeed chute and moves through the drum while the brushes rotate around it. As the vegetables travel forward, they are softly rubbed against the brushes and against each other, creating an effective polishing action. Integrated spray bars apply fresh and/or reused water inside the drum to improve cleaning performance while keeping water use under control.

The Polisher can be supplied in painted mild steel or stainless steel construction, depending on hygiene needs and operating conditions. Contact areas such as the infeed, outfeed, and covers can be provided in stainless steel for improved corrosion resistance and easy cleaning, while key internal components are built for long-term durability.

Characteristics

  • Strong and robust construction
  • Separate variable speed control for brush and drum
  • Highly reliable V-belt and synchronous belt drive systems
  • Fresh and recycled water spray bars inside the drum
  • Manual or automatic outfeed gate to control product depth
  • Manual or automatic water management with inlet and outlet valves

Specifications

AV TD 250-12 AV TD 300-14 AV TD 350-18
Length of the drum (in cm) 250 300 350
Amount of rollers 12 14 18

Capacity (tons/hour)

Type AV TD 250-12 AV TD 300-14 AV TD 350-18
Potatoes 10 – 14 15 – 17 25
Carrots 6 – 8 8 – 10 15 – 20
Baby carrots 5 – 7 6 – 8 10 – 15

Options

Material and treatment (frame)

Painted mild steel
Frame made from painted mild steel. Doors, infeed, outfeed and covers are made from stainless steel AISI304.
Stainless steel
Frame, doors, infeed, outfeed and covers are made from stainless steel AISI304.

Brush hardness (mm)

0.2 – 1.2
Available in Black, Yellow, Red, Grey, Green, Blue and White

Electrical control

No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel with HMI. Cable length: 5, 10, 15 or 20 meters
Central control in line
Motors and necessary sensors

Water management

Manual
Valves operated manually
Automatic
Valves operated automatically except outfeed valves

Height of subframe

Height of subframe
0 – 5 meter

Tank

Recirculation tank
Tank is included to receive used water

Water gutter

Gutter
A water gutter is included

Drain valve

Manual
Valves operated manually
Automatic
Valves operated automatically

Valve fresh water

No valve
No valve included to the fresh water pipe
Manual
Fresh water valve operated manually
Automatic
Fresh water valve operated automatically
